INSPECTION & ACCURATE CRACK DETECTION

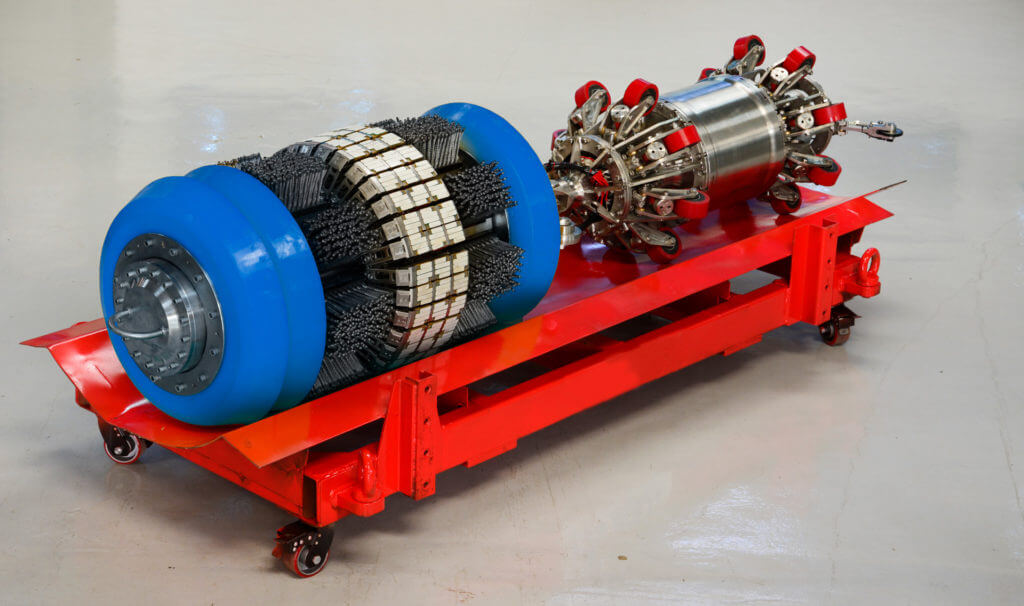

Our EMAT inspection method is effectively creating and using ultrasound for the detection of cracks/stress corrosion cracking without the need for a liquid couplant. A secondary benefit of the EMAT technology is that it may detect disbanded coating.
This technology based on the generation of ultrasonic waves is expanding ultrasonic inspection methods from only liquid lines to gas pipelines. It has distinct advantages that make it the technique of choice for many applications with accurate 360-degree inspection and 100% line coverage.
This technology based on the generation of ultrasonic waves is expanding ultrasonic inspection methods from only liquid lines to gas pipelines. It has distinct advantages that make it the technique of choice for many applications with accurate 360-degree inspection and 100% line coverage.
| General Specifications | |
|---|---|
| Calculated Length | 2870 mm |
| Calculated Weight | 860 Kg |
| Minimum ID in Straight Line | 519 mm (85% OD) |
| Minimum ID in 1.5D, 3D, and 5D | 550 mm (90% OD) |
| Launching Length | 2600 mm |
| Receiving Length | 2600 mm |
| Maximum Standard Pipeline length | 330 km (205 mi) |
| Excluding Naphtha/Benzene | 200 km (124.3 mi) |
| XYZ GEO Mapping Unit | Optional |
| Speed Control | Optional |
| Distance Measurement Unit | Odometer (04) |
| Tracking System | Available |
